B84 / B84D Titanium Upper Screw Set

Part Number: 1172

56 piece B84 Upper Titanium Screw Set.  Schelle premium Titanium screws are made of Grade 5 Titanium Alloy (commonly known as 6Al-4V) with a bright machined finish to give your car that pure racing look.  Unlike the dull and soft Grade 2 alloy known to be used by other brands, the Grade 5 Titanium alloy is the most strong and desirable, giving 40% lighter weight and corrosion resistance compared to steel.  With a little TLC, these screws will look as fantastic in a year as they did the day you take them from the package.

The Schelle B84 upper set of 56 screws strategically removes kit steel screws from up high above the chassis, which lowers the CG and improves handling. All chassis bottom screws are not included in this set.

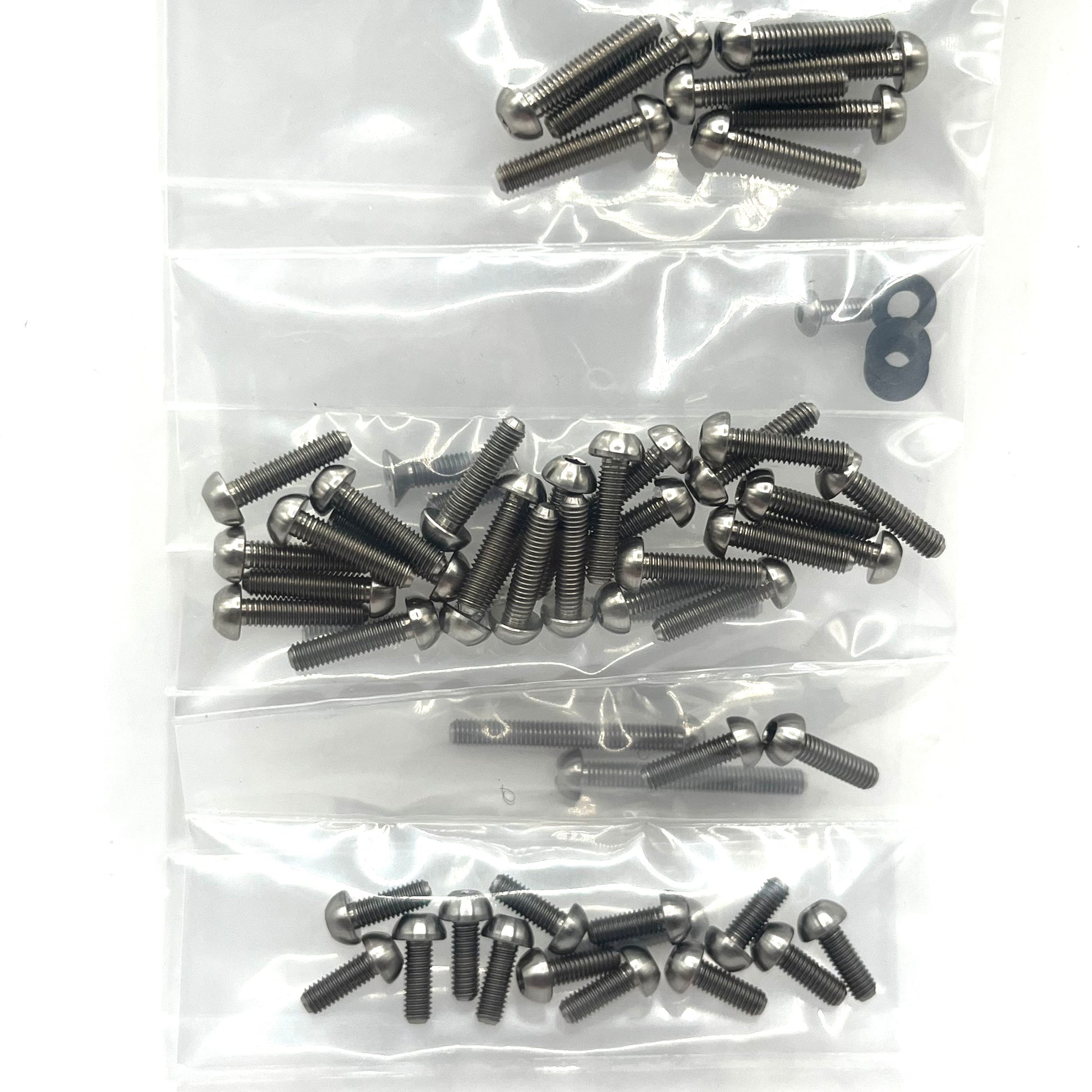

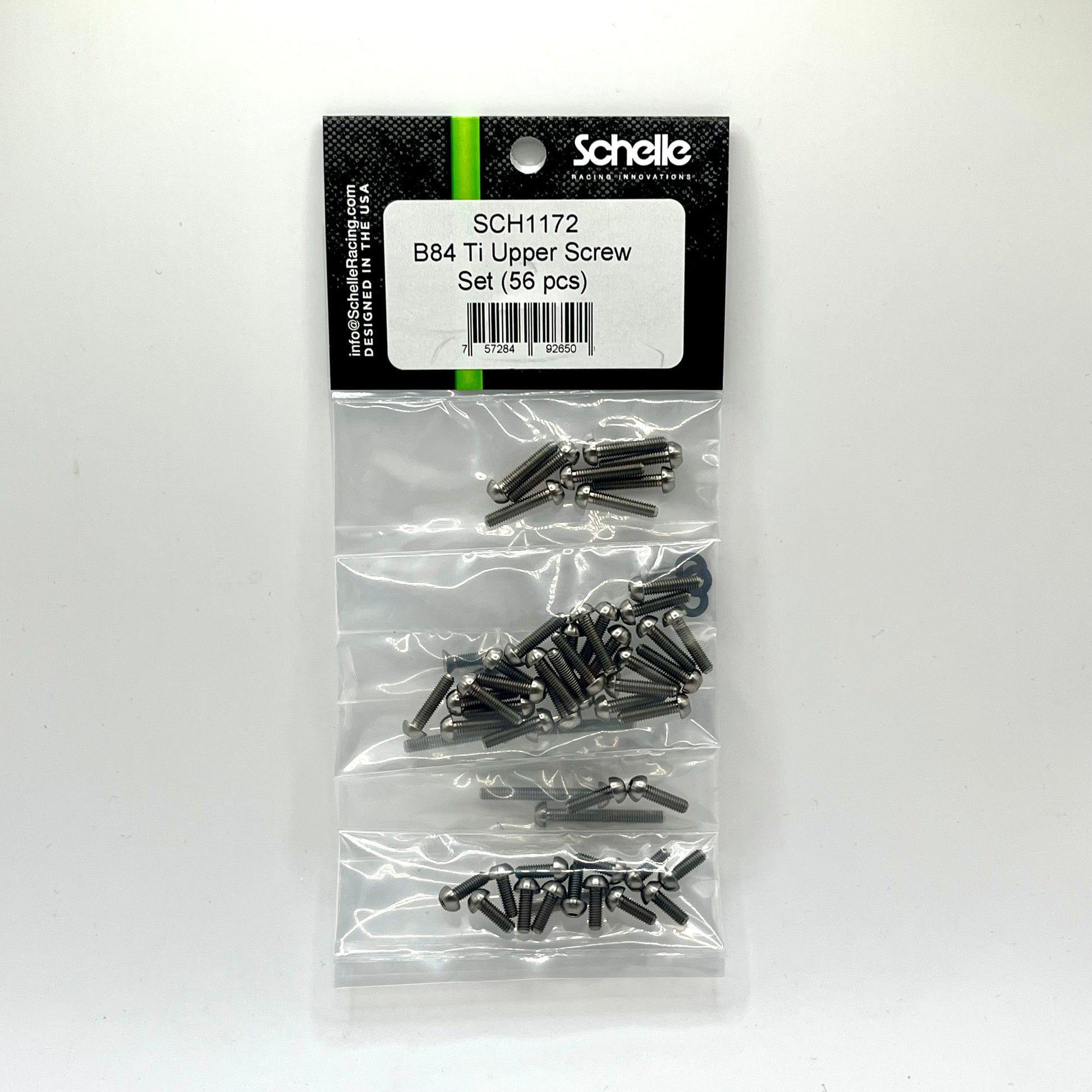

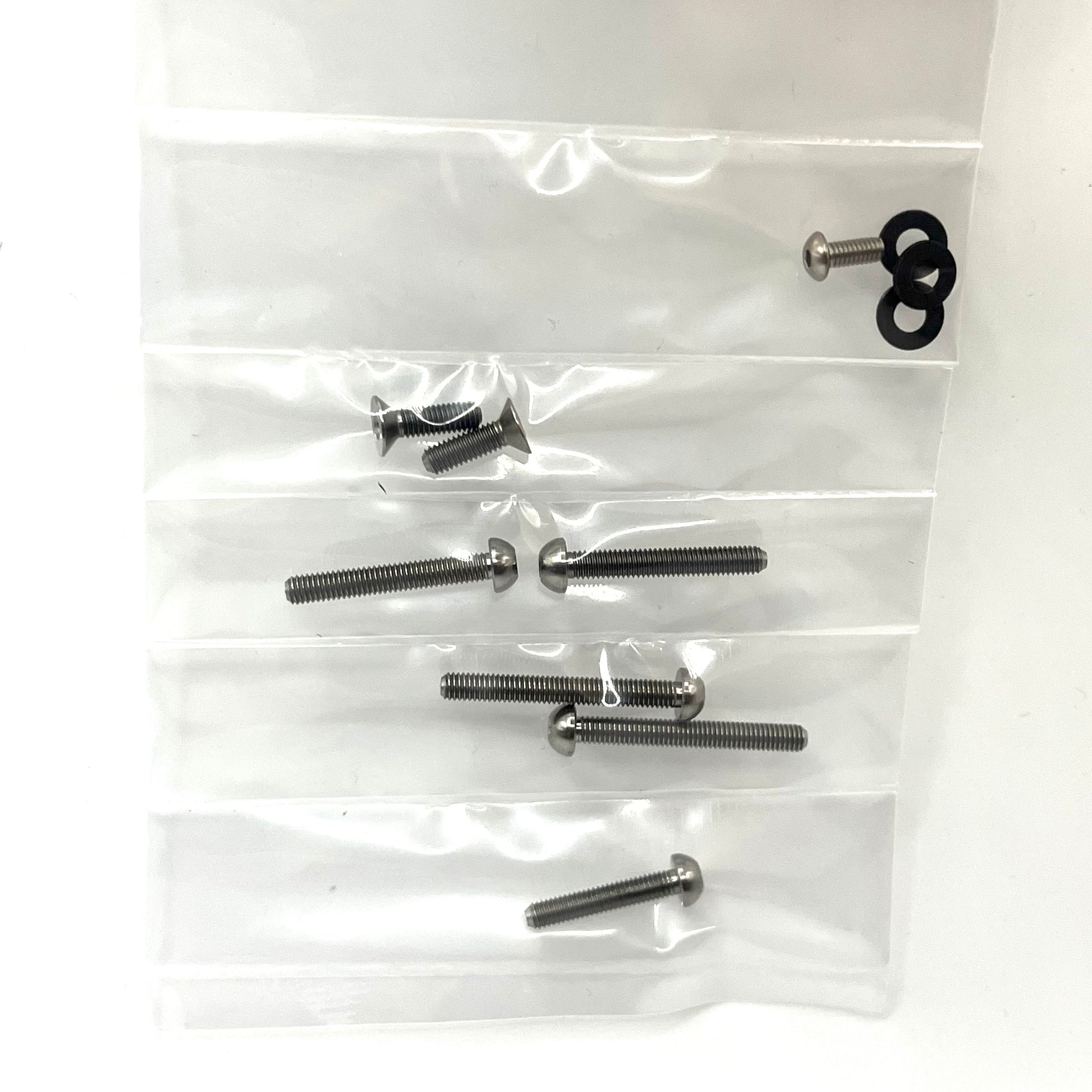

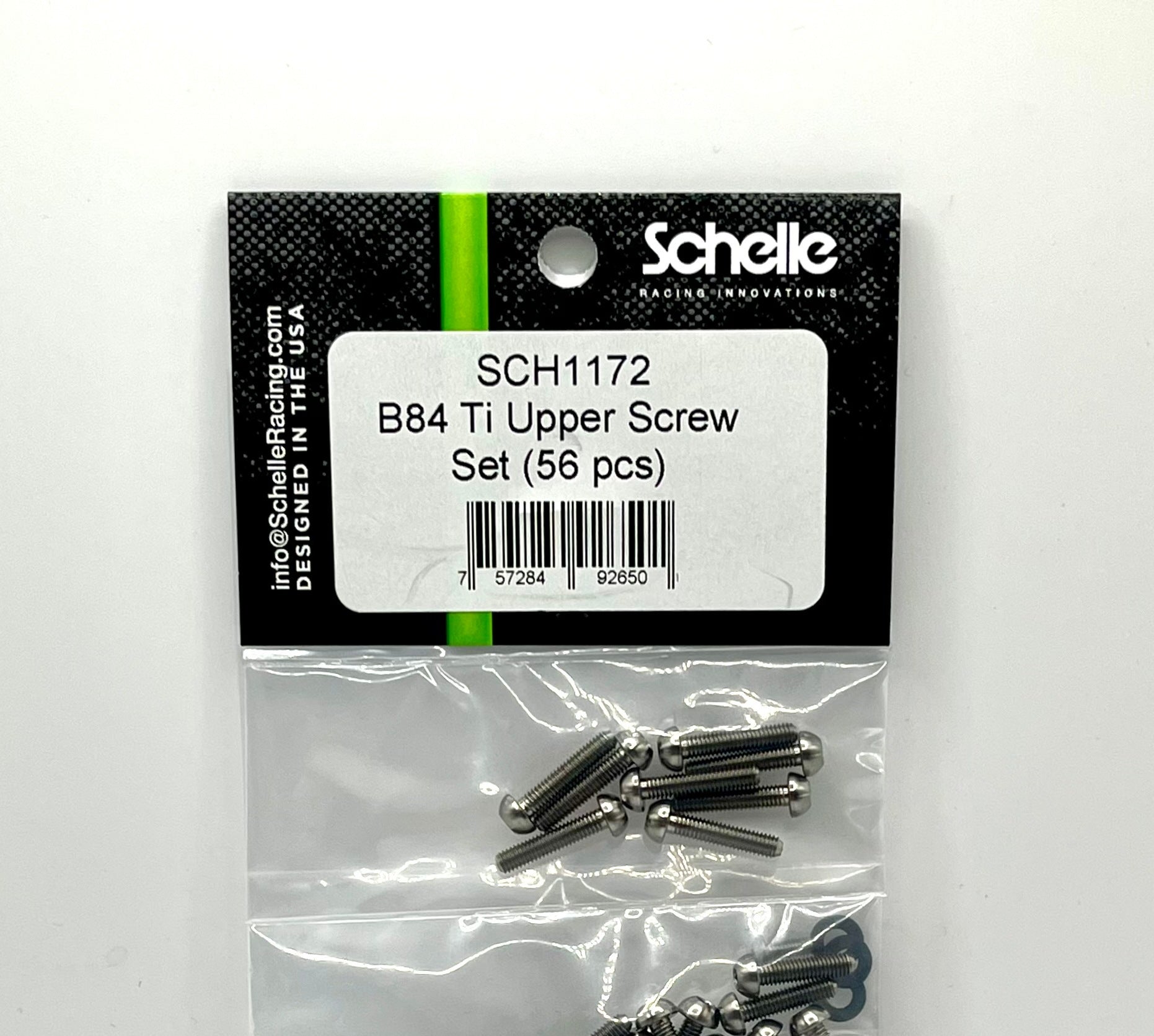

B84 Titanium Upper Screw Set:

1. Premium Grade 5 Titanium Alloy screws with bright machined finish. Won't rust like steel screws!
2. 56 pcs. set comes bagged by length (chassis plate screws not included).
3. 15g weight savings.
4. For B84 and B84D.

** Pre-Tap all holes with a steel screw or M3x0.5 tap before installation.**

Screw list:

M3x8 Button Head: servo mount (3), top plate (2), steering plates (4), rear battery mount (2), center diff cap (2)
M3x10 Button Head: center diff cap/fan mount (2)
M3x12 Button Head: rear gearbox cap (4), rear chassis brace (2), front gearbox cap (4), front tower (3), rear tower(4), wing mount (3), rear hub cap (4), caster block (2 short hat)
M3x14 Button Head: caster block (2 tall hat), fan screws (4), front shock/arm (2)
M3x16 Button Head: Lower fan mount
M3x20 Button Head; Battery Post (2)
M3x24 Button Head: center spine (2)
M3x10 Flat Head: Rear wing (2)
