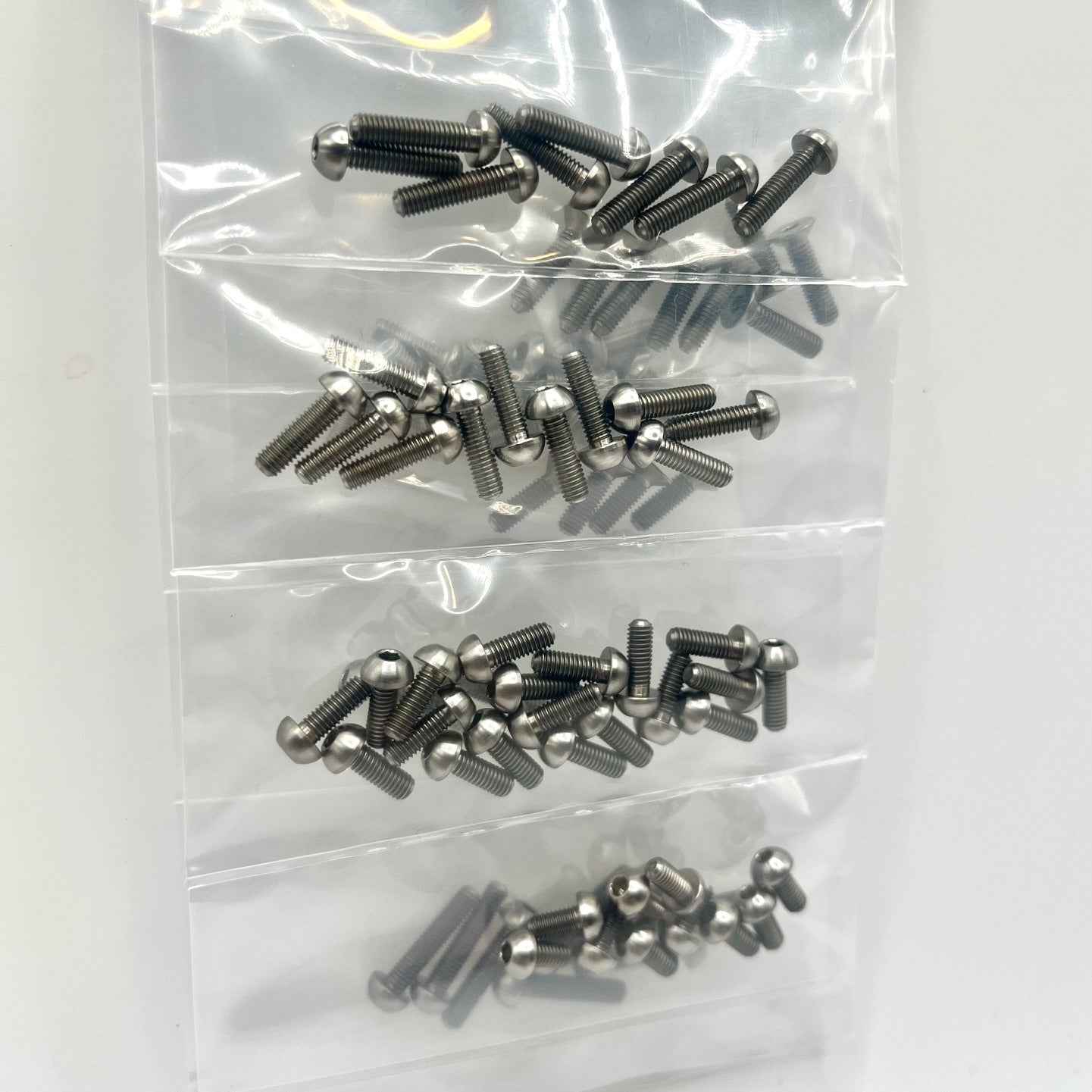

TLR 22X-4 Titanium Upper Screw Set

Part Number: 1129

Schelle premium Titanium screws are made of Grade 5 Titanium Alloy (commonly known as 6Al-4V) with a bright machined finish to give your car that pure racing look.  Unlike Grade 2 known to be used by other brands, the Grade 5 Titanium alloy is the most desirable, giving 40% lighter weight and corrosion resistance compared to steel.

The Schelle 22X-4 upper set of 70 Titanium screws strategically removes kit steel screws from up high above the chassis, which lowers the CG and improves handling.   All chassis bottom screws are not included in this set.  M3 screws only (no swaybars or set screws).

22X-4 Titanium Upper Screw Set:

1.    Premium Grade 5 Titanium Alloy screws with bright machined finish
2.    70 pcs. set comes grouped by length.
3.    18g weight savings (2/3 oz).
4.    Large sized Button Head Schelle Ti screws additional features: 1) no rust   2) sharp threads, will not unscrew   3) deep 2mm hex won't strip
5.    For 22X-4 kits (only change is updated rear hubs to BH screws).  Set packaged in poly bags sealed by length.  Locations spec'd out below.

** Pre-Tap all holes with a steel screw or M3x0.5 tap before installation.**

Screw list:

• 3mm x 6mm
  1 – Slipper Outdrive
  1 – Front Body Mount
  1 – Front Bumper
  3 – Servo Plate
  1 – Servo Arm
  2 – Battery Spacer
  1 – Fan Mount

  3mm x 8mm
  5 – Chassis Braces
  3 – Center Top Plate
  2 – Steering Arm
  2 – Body Mount
  4 – Front/Rear Anti Roll Bar Mount
  4 – Steering Plate
  4 – Rear Hub Camber Mount
  4 – Servo
  1 – Wire Clip

  3mm x 10mm
  4 – Front / Rear Gear Box Housing
  4 – Front Shock Tower
  2 – Rear Shock Tower
  1 – Rear Body Mount

  3mm x 12mm
  4 – Caster Blocks
  2 – Lower Front Shock Mounts
  2 – Motor Clamp

  3mm x 14mm
  4 – Front / Rear Gear Box Housing
  2 – Wing Mount
  2 – Fan

  3mm x 16mm
  2 – Rear Gear Box Housing to Chassis Brace

  Flat Head Screws
  3mm x 10mm
  2 – Motor
  2 – Rear Wing

  3mm x 12mm
  8 – A,B,C,D Pivot Blocks

• Not included:  M3x4 front wing mount, Chassis bottom screws. M2.5 screws.
